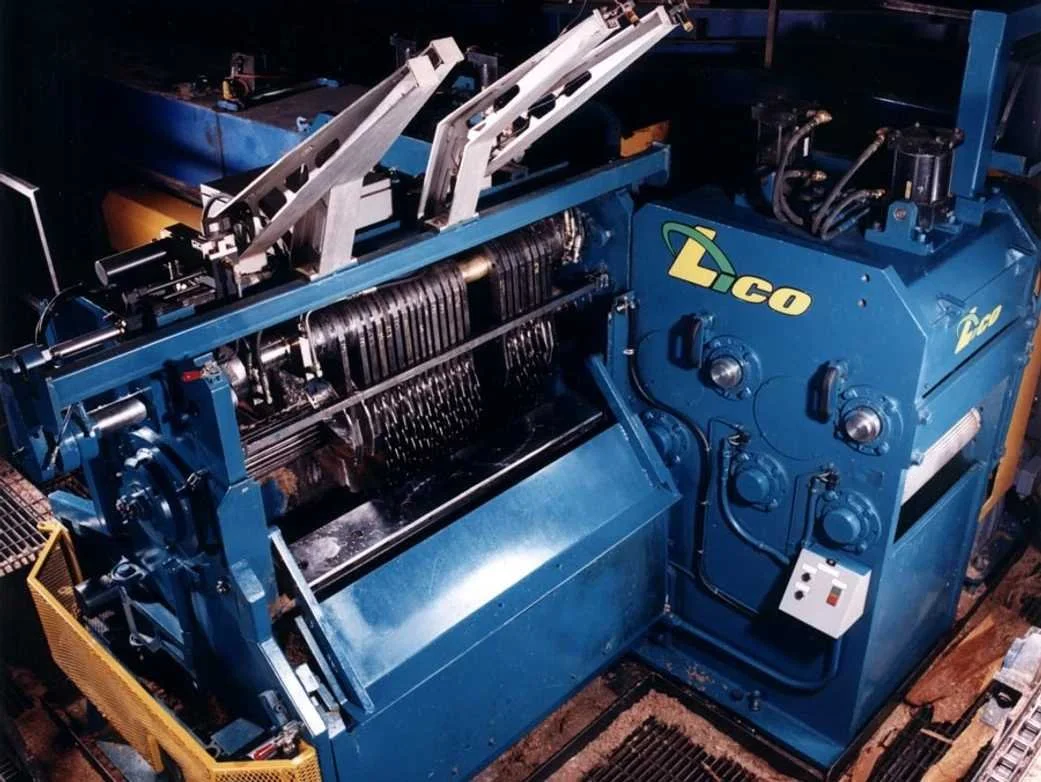

Lico Deb Series Gang Edger
Designed for softwood and hardwood
A unique hydraulic locking system allowing fixed and moveable guides mounted on the same support axis.
Steel guides hardened to 55 - 60 RC.
Fixed or moveable saw clusters
Different models of guided or standard strobe saws.
Very broad versatility of sawing patterns.
Characteristics:
Both top bottom and double arbor models are available
Different cutting deapth capacity available.
Heavy-duty welded steeel frame with machined housing for pilot bearings.
Pneumatic piping mounted with hydraulic components.
High quality mechanical components. Independent lubrication circuit and safety system for each saw cluster.
Pressurized water and oil lubrication
User-friendly operation of positioning console.
An alarm display identifies reasons for machine shutdown, reducing downtime. Hardened steel spline saw arbor and jackshift for high power capacity (2 x 300 HP).
Chromed feeding rolls with self cleaning diamond head profile.
Upper roll diameter: 10” or 12”
Lower roll diameter: 5” or 6”
Conical roller bearing with waterproof seals and centralized lubrication.
Integrated line bar and lateral press roll available.
Electric feed rolls driven by gear belts.
Sawdust protector plates.
All sensors are connected to junction boxes mounted on the machine.
Optimized Board Edger System
Fixed or movable arbor
